Mechanical power press J21,J23,JH21 Series press machine / punching machine

کور / محصولات / Mechanical power press J21,J23,JH21 Series press machine / punching machine

د تولید ځانګړتیاوې

Main features:
* From 6.3T to 160T different type for choice
* Fast Speed
* Easy to operate
* Simple Structure, easy to repair
* Also can make the punching dies

Main Parameters

ډول
Unit
J23-6.3T
J23-10T
J23-16T
J23-25T
J23-40T
J23-63T
J23-80T
J23-100T
Norminal Force
kN
63
100
160
250
400
630
800
1000
Norminal FOrce Stroke
mm
4
5
5
6
6
8
9
Slipper stroke
mm
40
50
60
70
100
100
120
130
Slipper stroke times
mm
195
130
110
70
55
60
50
45
max. closing height
mm
120
180
220
260
320
330
380
380
closing height adjuster
mm
20
35
50
60
80
80
100
100
Centre Distance
mm
/
120
180
190
230
240
260
310
Front-Back Dimension
mm
210
240
300
320
400
450
480
590
Left-Right Dimension
mm
230
360
450
530
650
710
750
890
Blank Hole length
mm
/
100
130
140
170
180
220
240
Blank Hole Width
mm
/
180
200
220
240
260
340
360
Blank Hole Diameter
mm
110
95
120
130
160
170
190
200
Slider Length
mm
110
100
130
170
220
230
240
280
Slider Width
mm
135
170
220
250
300
340
370
410
Die Handle Hole Dia.
mm
25
30
40
40
50
50
60
60
Die Handle Hole Depth
mm
40
50
60
60
70
70
80
80
Polo distance
mm
20
160
170
210
260
280
300
340
Table to Guider Distance
mm
/
200
250
290
340
350
380
400
Pad Thickness
mm
30
35
45
50
80
80
90
100
Body Tilting Angle
°
30
30
30
25
25
25
25
/
Motor Power
kW
0.75
1.1
1.5
2.2
4
5.5
7.5
7.5
Motor Speed
r/min
1410
1410
1410
1440
1440
1440
1440
1440
Length
mm
480
910
1100
1200
1500
1600
1750
1800
Width
mm
540
650
780
900
1100
1150
1300
1400
Height
mm
1350
1560
1800
2050
2400
2480
2600
2680
وزن
kg
350
420
760
1300
2600
3300
4500
5500

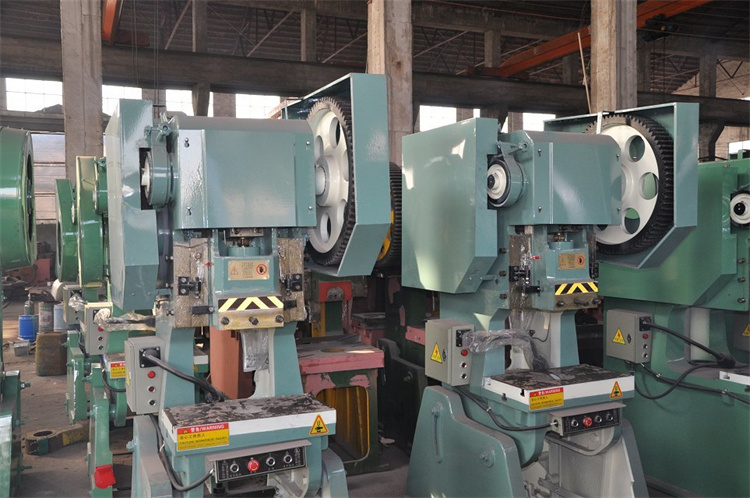

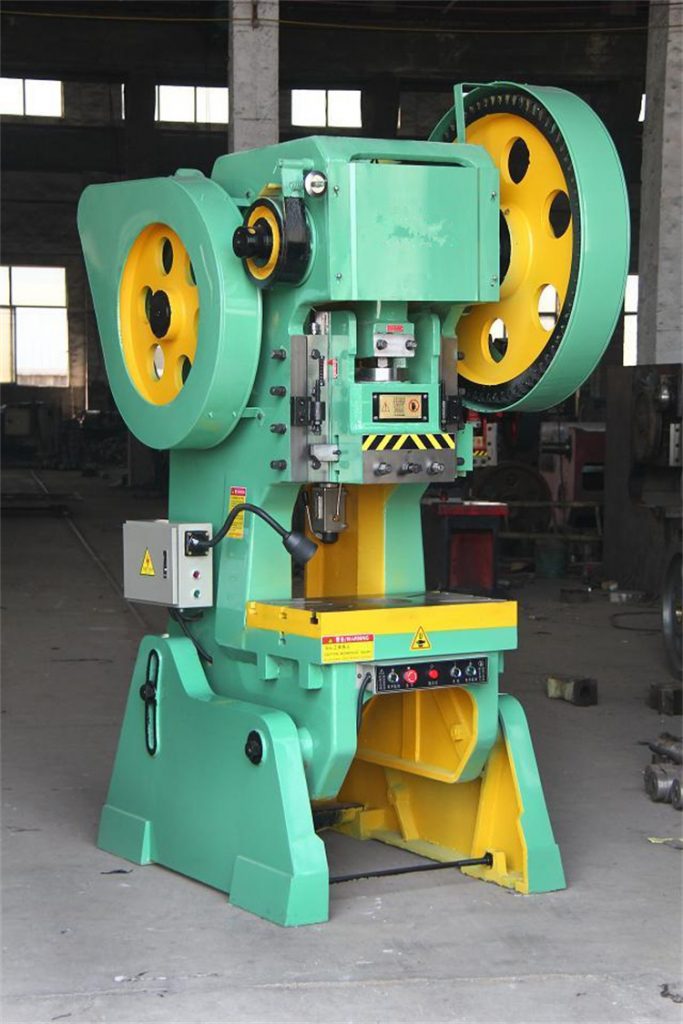

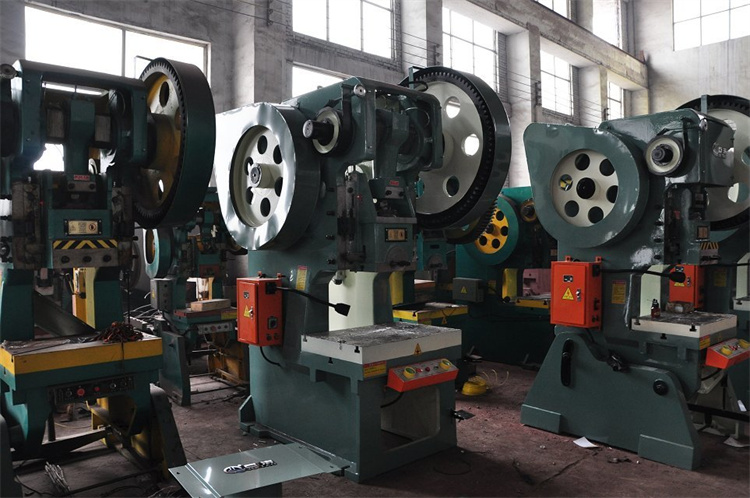

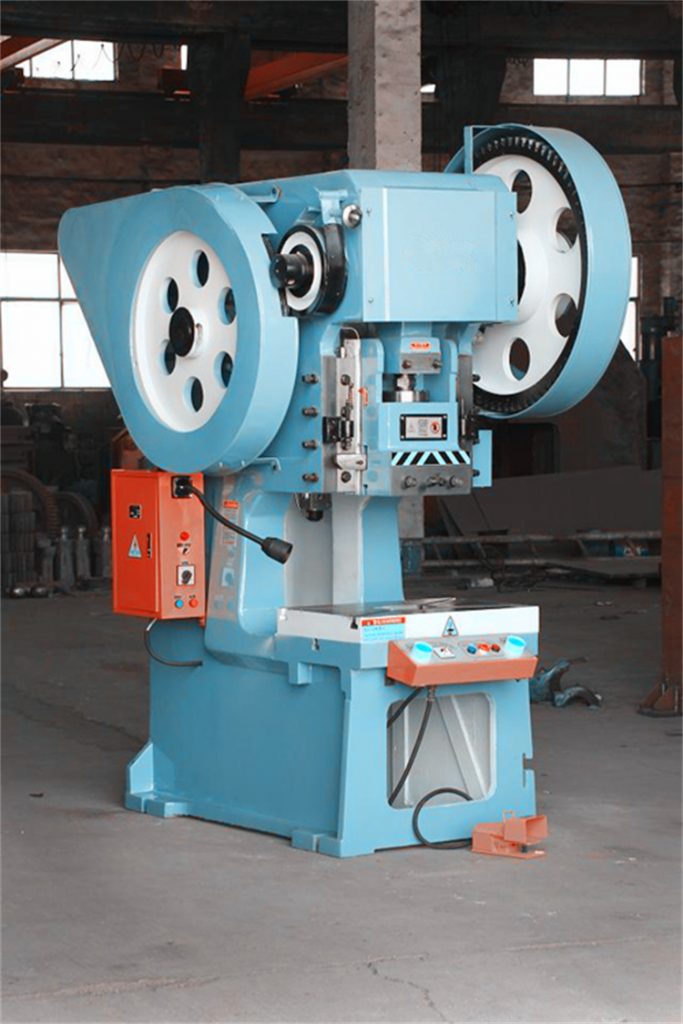

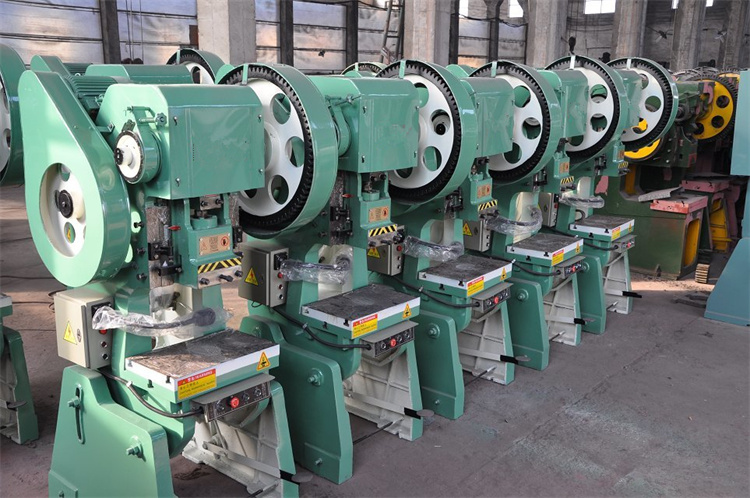

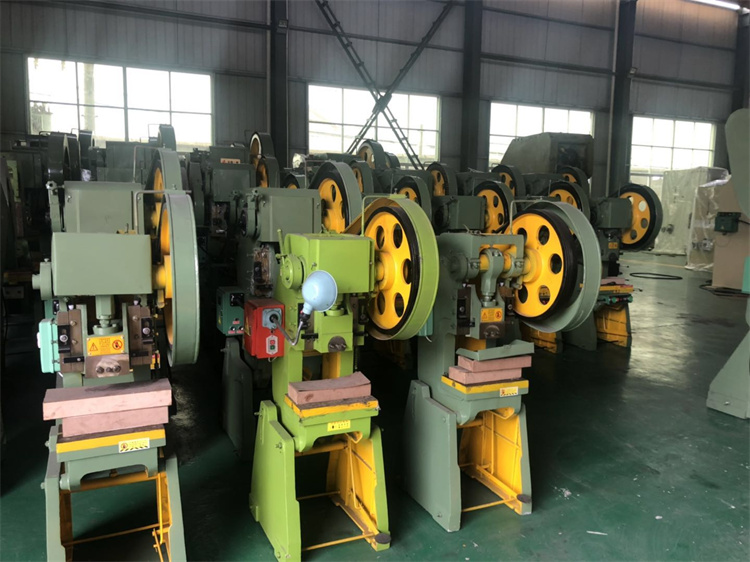

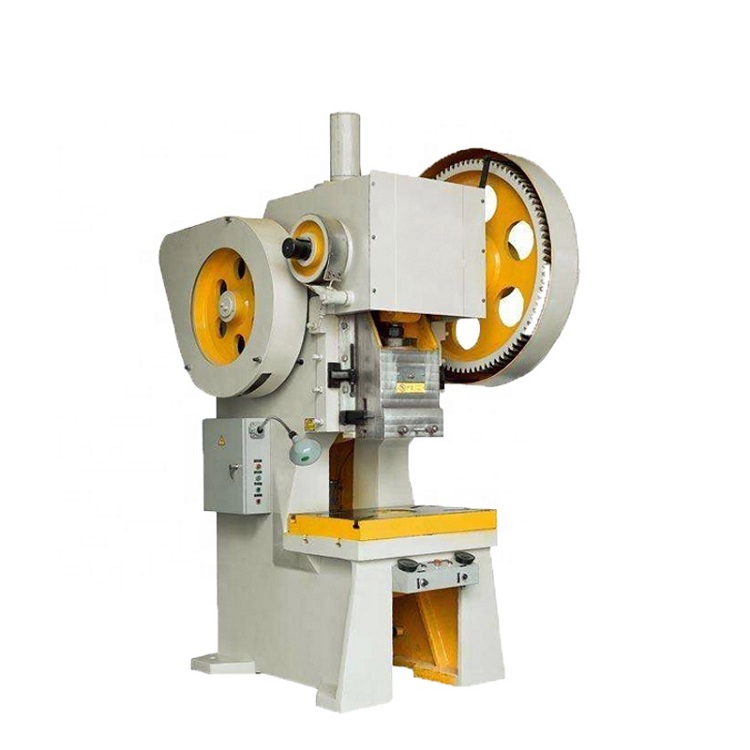

Detailed Images

Scope of application

Wildely used in electronic components , instrumentation, toys , military-industry , light industry , decoration , sheet metal processing , hardware tools , ships , automoeiles , metallurgy , solar energy , and other industry .
